| Inexpensive DIY Anemometer | |
| Page 5 | |
|

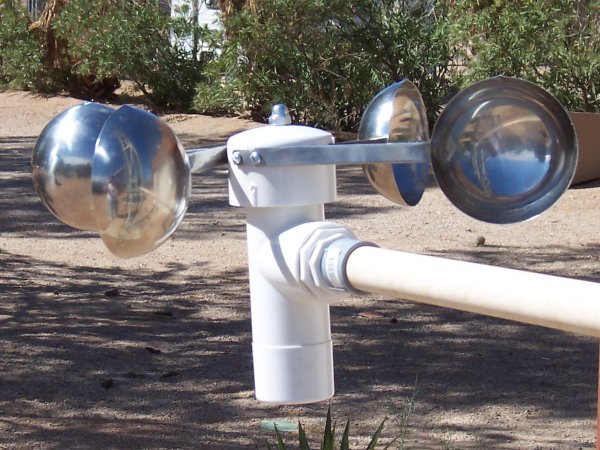

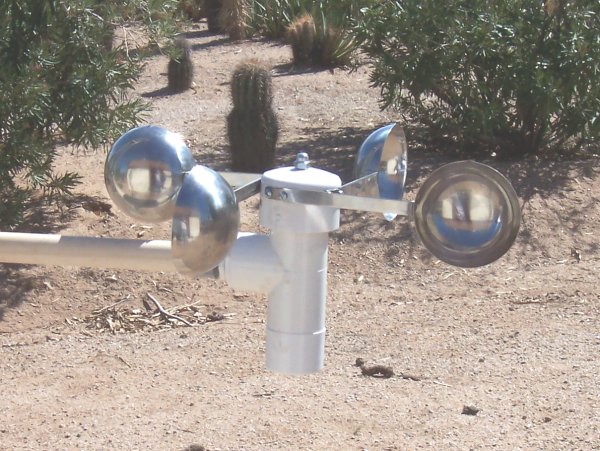

Completed Wind Sensor Mechanical Assembly. (click on image for larger view)

 A FEW NOTES: I found that I had to add a little RTV sealant under the top nut, and around the bottom cap to keep the rain out. I also found that this assembly is too heavy to be held up by the 3/4" PVC pipe attached to the side of the "T". I'll have to find an adapter that will let me screw a short piece of steel pipe into the opening. Next up I'm working on the electronics. If you would like to receive an email when I get that information onto the page, drop me an email and I'll add you too the list. I promise, your email address will be used for NOTHING else! Send me a note to: wind(at)hackersbench(dot)com Return to the beginning. |
|
